The Zebra ZD Series printers offer versatile options to meet a variety of labeling needs, with a focus on simplicity and reliability. This series is designed for efficient performance in space-constrained environments, providing consistent results across all models.
300 dpi
Print Resolution
Available in 203 and 300 dpi, depending on the selected model.
203 mm/s
Print Speed
Ensure reliable output with speeds up to 203 mm or 8 inches per second.
108 mm
Label Width
19 mm to 108 mm label width (approximately 0.75 to 4.25 inches).
127 mm
Roll Diameter
Accommodates rolls up to 5 inches in diameter for extended print runs.
Printer specifications.

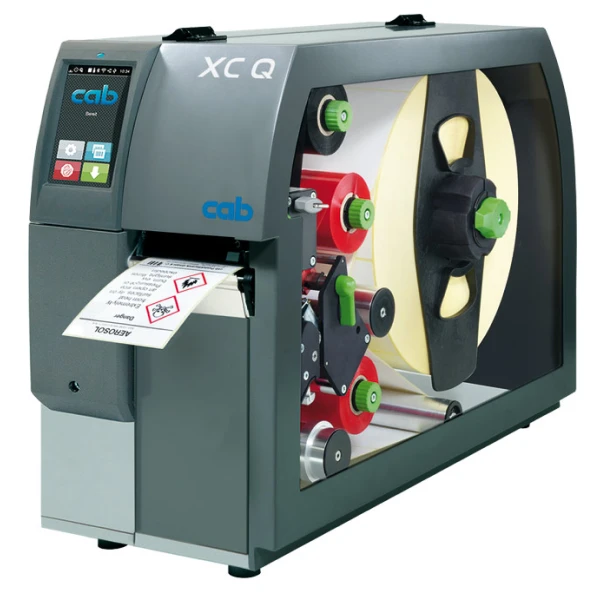

With robust performance and advanced features, the cab XC Q printers deliver precise two-color printing for demanding industrial environments.

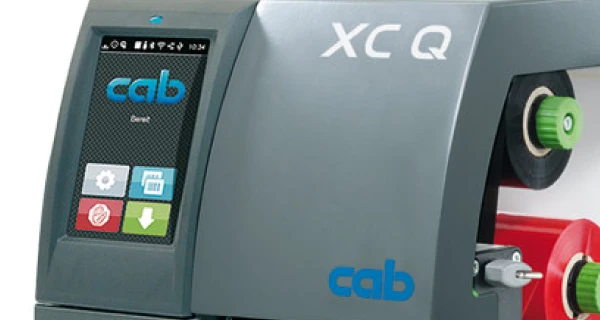

Display: 4.3-inch color LCD touchscreen for intuitive operation.
Interfaces: USB 2.0, RS-232, Ethernet, 2 USB hosts, optional WLAN.
Memory: 256 MB RAM, 50 MB Flash, SD card slot for up to 512 GB.
Power Supply: 100-240 V AC, 50/60 Hz.
Dimensions: 248 mm (W) x 395 mm (H) x 554 mm (D).
Label and ribbon specifications.
Whether you need continuous, die-cut, or fan-fold labels, the cab XC Q offers flexibility and precision for all your two-color labeling needs.
Media Types: Continuous, die-cut, black mark, fan-fold.
Print Width: Up to 105.7 mm (4.17 in.) for XC Q4, 162.6 mm (6.4 in.) for XC Q6.3.
Core Diameter: 76 mm (3 in.).
Ribbon Types: Wax, resin, wax/resin combinations.
Ribbon Dimensions: Up to 114 mm width and 450 m length.
GHS labeling with the cab XC Q.
Create high-quality GHS labels that meet stringent regulations. Its ability to print in both black and red simultaneously ensures that important hazard symbols and information stand out clearly. This printer is designed to handle the demands of industrial environments.

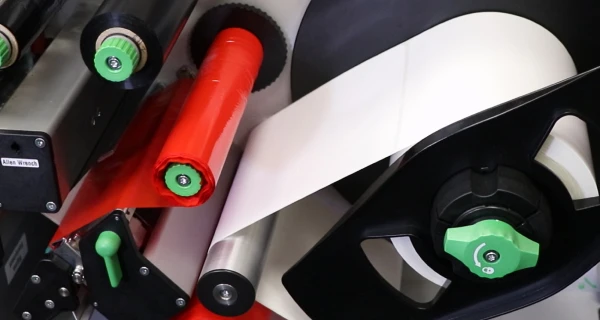

Two-ribbon thermal transfer printing.
The cab XC Q simplifies GHS labeling by printing both color-coded hazard symbols and detailed information in a single pass. This capability reduces printing time and ensures consistency across all labels.
Simultaneous black and red printing for clear hazard identification.
High-resolution printing for detailed and readable text and symbols.
Durable construction to withstand harsh industrial conditions.
Flexible media handling for various label sizes and types.
The cab XC Q is particularly suited for industries where GHS compliance is mandatory, such as chemicals, manufacturing, and logistics. Its precision in two-color printing ensures that all required information is presented accurately and visibly, reducing the risk of non-compliance. Additionally, the printer’s robust design ensures that it can consistently produce high-quality labels.
Industrial printer model comparison.
specification
zebra zt610
sato cl4nx plus
cab squix 4
print speed
Up to 356 mm/sec (14 in./sec)
Up to 355 mm/sec (14 in./sec)
Up to 300 mm/sec (11.8 in./sec)
print resolution
203, 300, 600 dpi
203, 305, 609 dpi
203, 300, 600 dpi
print width
Up to 104 mm (4.09 in.)
Up to 104 mm (4.09 in.)
108.4 mm (4.27 in.)
memory
1 GB RAM, 2 GB Flash
256 MB RAM, 2 GB Flash
256 MB RAM, 50 MB Flash
connectivity
USB 2.0, RS-232, Gigabit Ethernet, Bluetooth 4.0, optional Wi-Fi
USB, RS-232, Ethernet, optional Wi-Fi
USB 2.0, RS-232, Ethernet, WLAN
media types
Continuous, die-cut, notch, black mark
Continuous, die-cut, linerless, fanfold
Roll-fed, fanfold
label width
20 - 114 mm (0.79 - 4.5 in.)
25 - 131 mm (0.98 - 5.16 in.)
5 - 120 mm (0.19 - 4.72 in.)
roll diameter
203 mm (8 in.)
254 mm (10 in.)
205 mm (8 in.)
rfid support
UHF EPC Gen 2 V2, ISO/IEC 18000-63
UHF: Gen 2 ISO/IEC 18000-6C, HF: ISO/IEC 15693 & 14443
UHF EPC Class 1 Gen 2, multiple modules​
explore two-color printing
Discover how the XC Q dual-color printer can revolutionize your labeling process. Fill out the form to connect with one of our printing experts.
Landing Page Form
Related products.
zebra zt printers
The Zebra ZT Printer Series offers reliable, high-volume label printing. Designed for durability and performance in industrial environments.

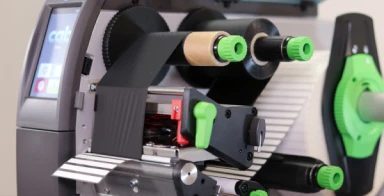

cab squix printer
The cab SQUIX printer delivers precise, high-quality printing for various applications. It combines versatility and reliability to meet demanding needs.

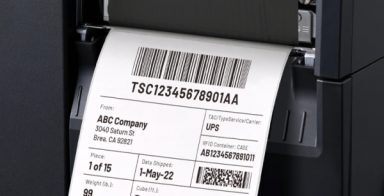

tsc tc printers
