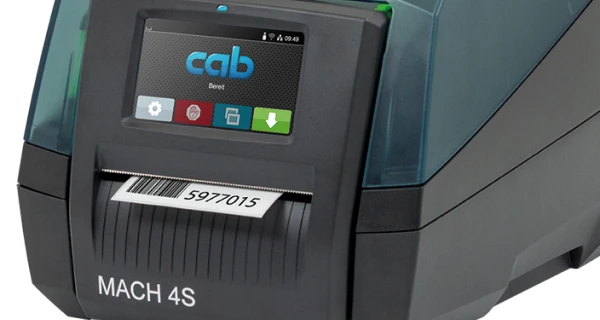

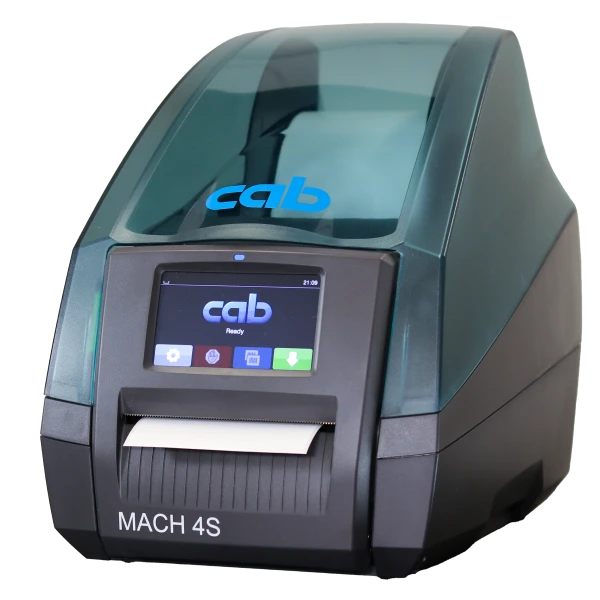

cab mach 4s printer

Efficient and precise thermal transfer barcode printing.

Compact, desktop-friendly thermal transfer printer designed for high-quality label printing. Ideal for various industrial and commercial applications.

  • Compact, space-saving desktop design.
  • Supports multiple label media types.
  • Easy, intuitive touch screen operation.

Whether you need to print fine details on small labels or handle large batches with ease, the Mach 4S delivers consistent performance.

shop label and ribbon kits

Technical and media specifications.

The cab Mach 4S combines advanced engineering with versatile media handling to deliver exceptional label printing performance. Detailed technical and media specifications highlight its capabilities, ensuring that it meets the demands of diverse applications.

600 dpi

Print Resolution

Available in 200, 300, and 600 dpi depending on model and print speed.

300 mm/s

Print Speed

150 and 300mm/s print speeds depending on model and print resolution.

120 mm

Label Width

5 mm to 120 mm print width (approximately 0.19 – 4.72 inches).

205 mm

Label Diameter

Maximum 205 mm (approximately 8.07 inches) label roll diameter.

Printer specifications.

With precise print resolution and versatile connectivity, the Mach 4S delivers consistent and reliable performance for a wide range of labeling tasks.

  • Display: Full-color touchscreen for easy operation.
  • Interfaces: USB 2.0, RS-232, Ethernet, optional WLAN.
  • Memory: 256 MB RAM, 50 MB Flash, SD card slot for expansion.
  • Power Supply: 100-240 V AC, 50/60 Hz.
  • Dimensions: 240 mm (W) x 310 mm (H) x 435 mm (D).

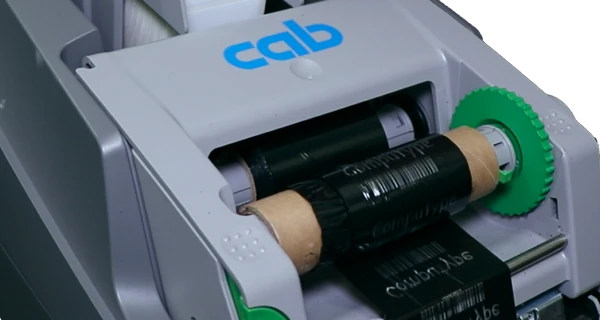

Label and ribbon specifications.

Designed to accommodate a variety of label sizes and ribbon types, the Mach 4S offers the flexibility needed for standard and specialized labels.

  • Media Types: Continuous, die-cut, black mark, fan-fold.
  • Print Width: Up to 105.7 mm (4.17 in.).
  • Core Diameter: 38.1 mm to 76 mm (1.5 in. to 3 in.).
  • Ribbon Types: Wax, resin, wax/resin combinations.
  • Ribbon Dimensions: Up to 114 mm width and 360 m length.

Desktop printer model comparison.

specification

zebra zd421

tsc tc310

cab mach 4s

print speed

Up to 152 mm/s (6 in./sec)

102 mm/sec (4 in./sec)

Up to 300 mm/sec (12 in./sec)

print resolution

203 dpi or 300 dpi

300 dpi

203, 300, 600 dpi

print width

Up to 104 mm (4.09 in.)

Up to 105.6 mm (4.15 in.)

Up to 108.4 mm (4.27 in.)

memory

512 MB Flash, 256 MB SDRAM

128 MB Flash, 64 MB SDRAM

256 MB RAM, 50 MB Flash

connectivity

USB 2.0, USB Host, optional Ethernet, Serial, Wi-Fi, Bluetooth

USB, RS-232, Ethernet, USB Host, optional Bluetooth

USB 2.0, RS232C, Ethernet, WLAN

media types

Roll-fed or fan-fold, die-cut, continuous, tag stock, wristbands

Continuous, die-cut, black mark, fan-fold

Rolls or fanfold, continuous media

label width

15 - 118 mm (0.585 - 4.65 in.)

20 - 112 mm (0.79 - 4.4 in.)

5 - 120 mm (0.19 - 4.72 in.)

roll diameter

127 mm (5 in.)

127 mm (5 in.)

205 mm (8 in.)

ribbon length/width

300 m / 33.8 - 109.2 mm (984 ft. / 1.33 - 4.3 in.)

360 m / 25 - 114 mm (1181 ft. / 0.98 - 4.5 in.)

360 m / 25 - 114 mm (1181 ft. / 0.98 - 4.5 in.)
