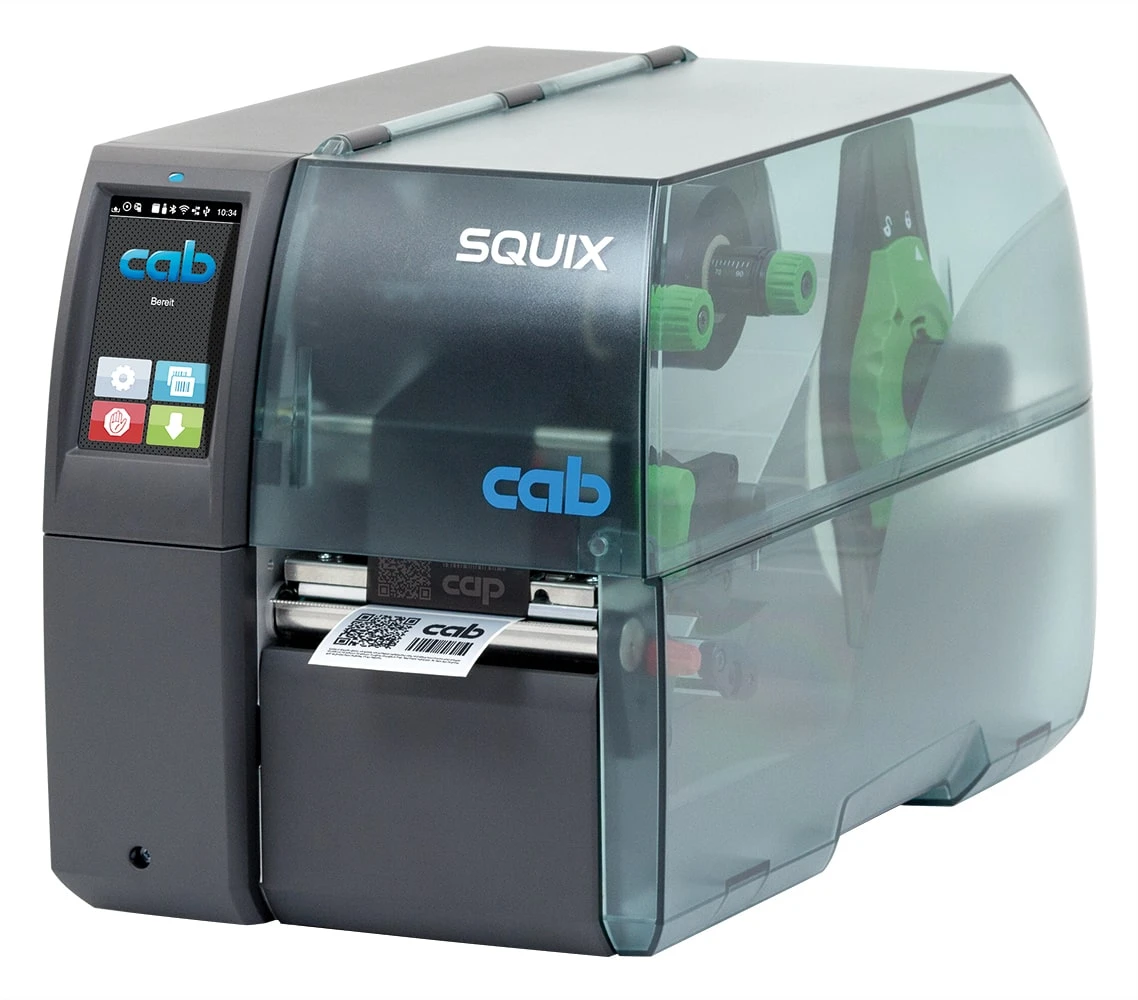

cab squix printer
Efficient print and apply solutions for versatile labeling.
Experience the precision and versatility of cab SQUIX printers. Designed for superior performance, these printers excel in demanding environments.
- High-speed thermal transfer printing
- Versatile accessories for increased efficiency
- Durable, compact construction for long-term use
Optimize your workflow with the innovative technology of cab SQUIX printers. Trust in their unmatched versatility to meet the diverse needs of your applications.
cab SQUIX printer specifications.
The cab SQUIX printers are versatile thermal transfer models built for precision and high-volume output. Supporting continuous, die-cut, black mark, and fan-fold media, they deliver sharp, consistent results. With robust construction and advanced features, SQUIX printers adapt easily to diverse industrial labeling requirements and workflows.
600 dpi
Print Resolution
Available in 203, 300, and 600 dpi depending on model and print speed.
300 mm/s
Print Speed
150, 250, and 300 mm/s print speeds depending on model and print resolution.
120 mm
Label Width
5 mm to 120 mm print width (approximately 0.19 – 4.72 inches).
205 mm
Roll Diameter
Maximum 205 mm (approximately 8.07 inches) label roll diameter.
Printer specifications.
With robust connectivity options and ample memory, these printers ensure seamless integration and reliable performance in demanding environments.

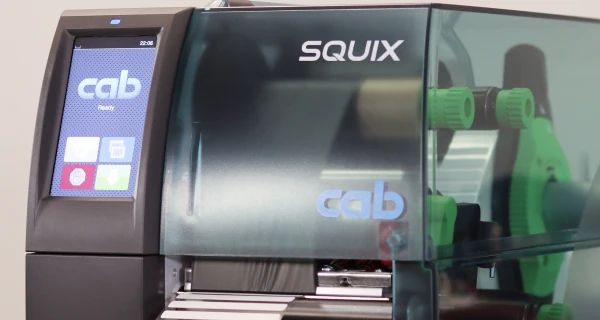

- Display: 4.3-inch color touchscreen for intuitive operation.
- Interfaces: USB 2.0, RS-232, Ethernet, optional WLAN.
- Memory: 256 MB RAM, 50 MB Flash, SD card slot for expansion.
- Power Supply: 100-240 V AC, 50/60 Hz.
- Dimensions: 252 mm (W) x 288 mm (H) x 460 mm (D).

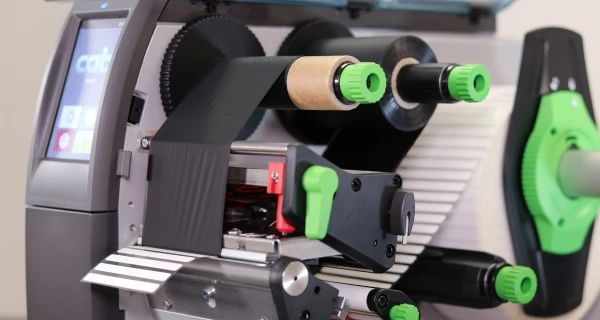

Label and ribbon specifications.
Whether you need continuous, die-cut, or fan-fold labels, these printers offer flexibility and precision for all your labeling needs.
- Media Types: Continuous, die-cut, black mark, fan-fold.
- Print Width: Up to 108.4 mm (4.27 in.).
- Core Diameter: 38.1 mm to 76 mm (1.5 in. to 3 in.).
- Ribbon Types: Wax, resin, wax/resin combinations.
- Ribbon Dimensions: Up to 114 mm width and 600 m length.
Industrial printer model comparison.
The comparison below features the CAB SQUIX alongside the Zebra ZT610 and TSC MB341T. Specifications are organized side by side to provide a clear view of performance, media compatibility, and resolution, helping identify the printer that best aligns with unique labeling and operational needs.
specification
zebra zt610
tsc mb341T
cab squix 4
print speed
Up to 356 mm/sec (14 in./sec)
Up to 228.6 mm/sec (9 in./sec)
Up to 300 mm/sec (11.8 in./sec)
print resolution
203, 300, 600 dpi
300 dpi
203, 300, 600 dpi
print width
Up to 104 mm (4.09 in.)
Up to 105.7 mm (4.16 in.)
108.4 mm (4.27 in.)
memory
1 GB RAM, 2 GB Flash
128 MB RAM, 128 MB SDRAM
256 MB RAM, 50 MB Flash
connectivity
USB 2.0, RS-232, Gigabit Ethernet, Bluetooth 4.0, optional Wi-Fi
USB, RS-232, Ethernet, Bluetooth, Bluetooth MFi, optional Wi-Fi
USB 2.0, RS-232, Ethernet, WLAN
media types
Continuous, die-cut, notch, black mark
Continuous, die-cut, black mark, fanfold, notched
Roll-fed, fanfold
label width
20 - 114 mm (0.79 - 4.5 in.)
20 - 120 mm (0.8 - 4.7 in.)
5 - 120 mm (0.19 - 4.72 in.)
roll diameter
203 mm (8 in.)
203.2 mm (8 in.)
205 mm (8 in.)
cab SQUIX printer accessories and add-ons.
One of the defining features of the cab SQUIX printer is its modularity, allowing you to customize and expand its capabilities to meet your specific needs. With a wide range of optional accessories, the SQUIX can be tailored to enhance efficiency, versatility, and performance in your labeling operations. Below are some of the key accessories that can be added to the SQUIX printer.

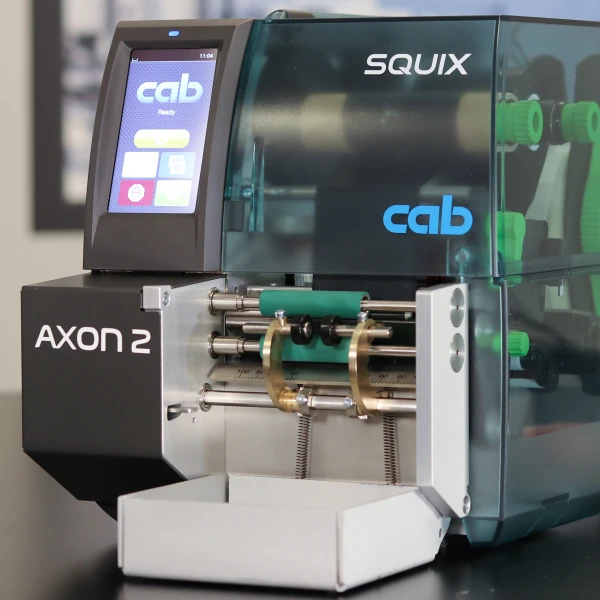

cutter
The cutter accessory allows for precise cutting of labels after printing. This is ideal for applications requiring individual labels or shorter label strips, providing clean and accurate cuts every time.
peel-off adapter
The peel-off adapter simplifies the application process by automatically peeling the backing from labels as they are printed. This feature is particularly useful in automated production lines.
external rewinder
An external rewinder collects printed labels onto a roll, making it easier to manage large volumes of labels. This accessory is perfect for high-volume printing tasks.
Applicator attachments and models.
Enhance your cab SQUIX printer’s functionality with a variety of applicator options designed to streamline the labeling process. These applicators can be integrated with the SQUIX to automate label application, increasing productivity and accuracy in your operations.
- The SQ1000 applicator utilizes a tamp mechanism for precise label placement on flat or slightly curved surfaces, making it ideal for a wide range of labeling tasks.
- The SQ3200 is a tamp-blow applicator is designed to label boxes, electronic components, and microplates with consistent accuracy and reliability.
Each applicator is designed to meet specific needs, ensuring precise and reliable label application for various surfaces and shapes. Choose the right applicator to optimize your workflow and achieve superior labeling results in your operations.
tube labeler
microplate labeler
