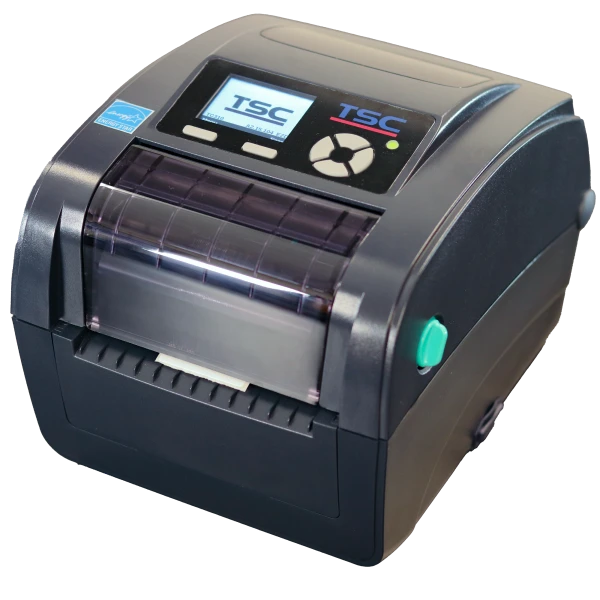

tsc tc series printers

Space-saving design for efficient desktop label printing.

These desktop-friendly printers are perfect for small to medium-sized businesses that require reliable printing without taking up too much space.

  • Compact design for tight spaces
  • High-resolution thermal transfer printing
  • Supports various label sizes and materials

The TC Series is designed to deliver consistent, high-quality labels, making it an excellent choice for businesses looking to improve their labeling efficiency.

Technical and media specifications.

The Zebra ZD Series printers offer versatile options to meet a variety of labeling needs, with a focus on simplicity and reliability. This series is designed for efficient performance in space-constrained environments, providing consistent results across all models.

300 dpi

Print Resolution

Available in 203 and 300 dpi, depending on the selected model.

203 mm/s

Print Speed

Ensure reliable output with speeds up to 203 mm or 8 inches per second.

108 mm

Label Width

19 mm to 108 mm label width (approximately 0.75 to 4.25 inches).

127 mm

Roll Diameter

Accommodates rolls up to 5 inches in diameter for extended print runs.

Printer specifications.

The Zebra ZD Series is built for durability and ease of use, with simple controls that minimize complexity and speed up the learning process.

  • Display: simple button control panel and color status icons.
  • Interfaces: USB, Ethernet, serial, and optional Wi-Fi.
  • Memory: 256 MB flash, 128 MB SDRAM.
  • Power Supply: 100-240 V AC, 50/60 Hz.
  • Dimensions: 221 mm (W) x 192 mm (H) x 270 mm (D).

Label and ribbon specifications.

The ZD Series supports various label and ribbon types, providing the flexibility needed for diverse applications.

  • Media Types: continuous, die-cut, black mark, and fan-fold labels.
  • Print Width: up to 108 mm to accommodate large labels.
  • Core Diameter: 25.4 mm (1 inch).
  • Ribbon Types: wax, resin, and wax/resin combinations.
  • Ribbon Dimensions: Up to 144 mm width and 450 m length.

Desktop printer model comparison.

specification

zebra zd420

tsc tc310

cab mach 4s

print speed

Up to 300 mm/s​

Up to 300 mm/s​

Up to 300 mm/s​

print resolution

200, 300, 600 dpi

200, 300, 600 dpi

203, 300, 600 dpi

print width

Up to 168 mm (6.6 in)

Up to 105.6 mm (4.17 in)

Up to 105.6 mm (4.17 in)

memory

256 MB RAM

256 MB RAM

256 MB RAM

connectivity

USB, Ethernet, serial, optional Wi-Fi

USB, Ethernet, serial

USB, Ethernet, serial

media types

Continuous, die-cut, black mark, fan-fold

Continuous, die-cut, black mark, fan-fold

Continuous, die-cut, black mark, fan-fold

label width

20 mm to 116 mm ( 0.79 in to 4.57 in)

25.4 mm to 110 mm ( 1 in to 4.33 in)

25.4 mm to 110 mm ( 1 in to 4.33 in)

roll diameter

20 mm to 116 mm ( 0.79 in to 4.57 in)

25.4 mm to 110 mm ( 1 in to 4.33 in)

25.4 mm to 110 mm ( 1 in to 4.33 in)

ribbon length

Up to 450 m

Up to 360 m

Up to 360 m

explore the TC series

Discover how the TSC TCprinter series can revolutionize your labeling process. Fill out the form to connect with one of our printing experts.
