The TSC TX Series offers a comprehensive lineup of desktop printers engineered to handle a variety of labeling tasks, from standard to high-resolution needs. This series includes models such as the TX200, TX300, and TX600, each tailored to deliver specific capabilities and performance levels. By exploring these models, you can find the ideal solution within the TX Series to meet your precise labeling requirements
200 Series
The TX200 and TX210 models provide reliable performance for standard labeling applications. With 203 dpi resolution and print speeds up to 8 inches per second, these printers are well-suited for moderate to high-volume tasks. Ideal for businesses seeking dependable functionality, the TX200 and TX210 offer a cost-effective solution.
300 Series
The TX300 and TX310 deliver high-resolution 300 dpi printing, designed for applications requiring finer detail. Operating at print speeds up to 6 inches per second, these models are ideal for businesses that need precise labeling for barcodes and graphics. The TX300 and TX310 balance quality and efficiency for advanced labeling needs.
600 series
The TX600 and TX610 models are built for high-resolution tasks, offering 600 dpi printing for detailed, small-label applications. With these models, you gain precise, crisp output suitable for intricate barcodes and graphics. The TX600 and TX610 are perfect for businesses that demand the highest level of print clarity in a desktop format.
Technical and media specifications.
The Zebra ZD Series printers offer versatile options to meet a variety of labeling needs, with a focus on simplicity and reliability. This series is designed for efficient performance in space-constrained environments, providing consistent results across all models.
600 dpi
Print Resolution
Available in 203, 300, and 600 dpi, depending on the selected model.
203 mm/s
Print Speed
102, 152, and 203 mm/s based on model version and print resolution.
112 mm
Label Width
19 mm to 112 mm label width (approximately 0.75 to 4.4 inches).
127 mm
Roll Diameter
Accommodates rolls up to 5 inches in diameter for extended print runs.

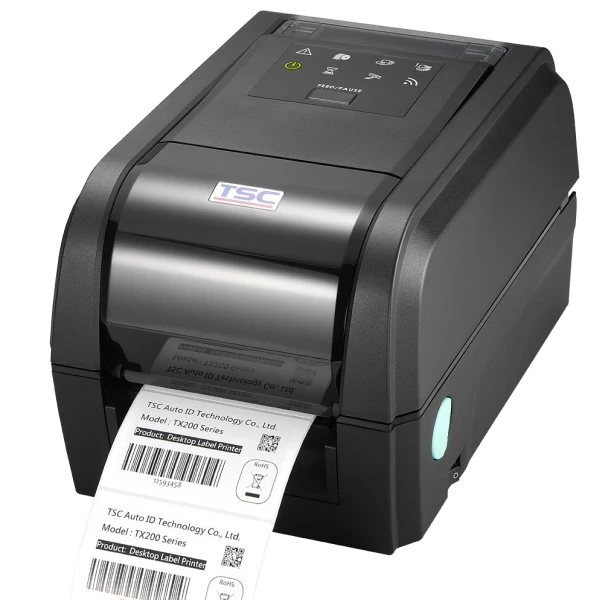

Printer specifications: TX210
The TSC TX210 is designed for reliable performance and user-friendly operation, featuring straightforward controls that enhance usability.
Display: LED status indicators with a two-button interface
Interfaces: USB, Ethernet, Serial, and optional Wi-Fi/Bluetooth
Memory: 128 MB Flash, 64 MB SDRAM
Power Supply: 100-240 V AC, 50-60 Hz
Dimensions: 332 mm L x 204 mm W x 191 mm H
Label and ribbon specifications: TX210.
The TX210 supports a range of label and ribbon types, offering flexibility for multiple applications.
Media Types: Continuous, die-cut, black mark, and fan-fold labels
Print Width: 19 mm to 108 mm (0.75 to 4.25 inches)
Core Diameter: 25.4 mm (1 inch) or 38.1 mm (1.5 inches)
Ribbon Types: Wax, resin, and wax/resin combinations
Ribbon Dimensions: Up to 110 mm width and 300 m length
Desktop printer model comparison.
specification
zebra zd421
tsc tc310
cab mach 4s
print speed
Up to 152 mm/s (6 in./sec)
102 mm/sec (4 in./sec)
Up to 300 mm/sec (12 in./sec)
print resolution
203 dpi or 300 dpi
300 dpi
203, 300, 600 dpi
print width
Up to 104 mm (4.09 in.)
Up to 105.6 mm (4.15 in.)
Up to 108.4 mm (4.27 in.)
memory
512 MB Flash, 256 MB SDRAM
128 MB Flash, 64 MB SDRAM
256 MB RAM, 50 MB Flash
connectivity
USB 2.0, USB Host, optional Ethernet, Serial, Wi-Fi, Bluetooth
USB, RS-232, Ethernet, USB Host, optional Bluetooth
USB 2.0, RS232C, Ethernet, WLAN
media types
Roll-fed or fan-fold, die-cut, continuous, tag stock, wristbands
Continuous, die-cut, black mark, fan-fold
Rolls or fanfold, continuous media
label width
15 - 118 mm (0.585 - 4.65 in.)
20 - 112 mm (0.79 - 4.4 in.)
5 - 120 mm (0.19 - 4.72 in.)
roll diameter
127 mm (5 in.)
127 mm (5 in.)
205 mm (8 in.)
ribbon length/width
300 m / 33.8 - 109.2 mm (984 ft. / 1.33 - 4.3 in.)
360 m / 25 - 114 mm (1181 ft. / 0.98 - 4.5 in.)
360 m / 25 - 114 mm (1181 ft. / 0.98 - 4.5 in.)
