The Zebra ZT Series includes a range of industrial printers designed to meet the diverse needs of various industries. Within this series, there are multiple models and sub-series, each offering specific features and capabilities to handle different printing demands. The ZT200, ZT400, and ZT600 sub-series are the most prominent, providing a progression of functionality and durability.
200 Series
Designed as an entry-level option, the ZT200 Series offers essential features for light to moderate industrial use. It combines a compact footprint with easy setup and operation, making it ideal for space-constrained environments.
Best for: space-efficient industrial printing
400 Series
The ZT400 Series adds more advanced features, including faster print speeds, higher print resolution options, and increased media handling capabilities. It’s well-suited for mid-range industrial applications that require more robust performance.
Best for: versatile mid-range applications
600 series

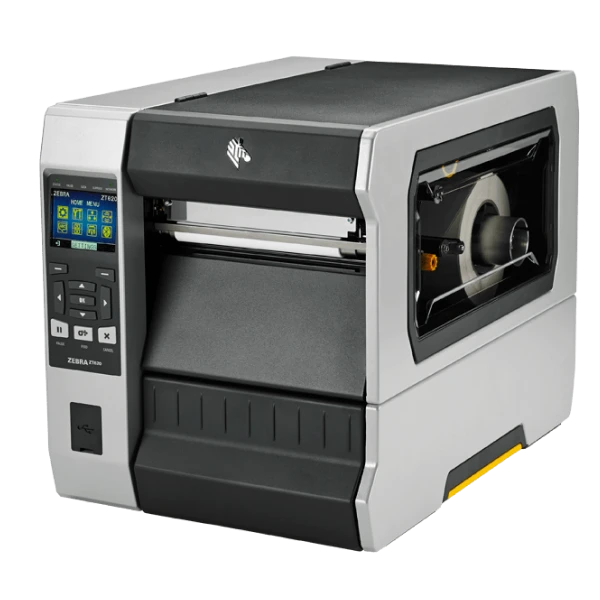

The ZT600 Series represents the top tier of the ZT Series, built for the most demanding environments. These printers offer the highest durability, extensive connectivity options, and RFID capabilities, making them perfect for heavy-duty industrial use.
Best for: heavy-duty, high-volume printing
Technical and media specifications.
The Zebra ZT Series is designed for demanding industrial environments, providing reliable performance and flexible options to meet a wide range of printing needs. With advanced features and robust construction, these printers ensure that you can handle high-volume tasks with ease.
600 dpi
Print Resolution
Available in 203, 300, and 600 dpi for crisp, detailed label prints.
356 mm/s
Print Speed
102, 205, and 356 mm/s print speeds depending on model and print resolution.
104°f
Operating Temp
Operational temperature range from 32°F to 104°F (0°C to 40°C).
203 mm
Roll Diameter
Maximum 203 mm (approximately 8 inches) label roll diameter.
Printer specifications: ZT610.
Built to withstand harsh environments, the Zebra ZT Series combines durability with advanced technology to deliver consistent performance.
Display: 4.3-inch full-color LCD touchscreen .
Interfaces: USB, Serial, Ethernet, Bluetooth and optional Wi-Fi.
Memory: 1 GB RAM, 2 GB Flash.
Power: Auto-detectable (PFC Compliant) 90-265 V AC, 47-63 Hz.
Dimensions: 268 mm (W) x 396 mm (H) x 505 mm (D)

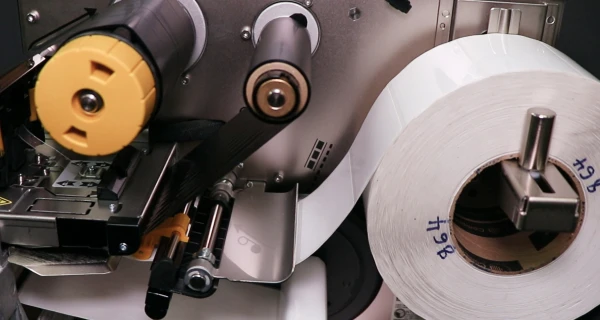

Label and ribbon specifications: ZT610.
These printers are equipped to handle everything from standard paper labels to more specialized materials, providing flexibility for various applications.
Media Types: Continuous, die-cut, notch, black mark, fan-fold.
Print Width: Up to 104 mm (4.09 in.).
Core Diameter: 76 mm (3 in.).
Ribbon Types: Wax, resin, wax/resin combinations.
Ribbon Dimensions: Up to 110 mm width and 450 m length.
Industrial printer model comparison.
specification
zebra zt610
sato cl4nx plus
cab squix 4
print speed
Up to 356 mm/sec (14 in./sec)
Up to 355 mm/sec (14 in./sec)
Up to 300 mm/sec (11.8 in./sec)
print resolution
203, 300, 600 dpi
203, 305, 609 dpi
203, 300, 600 dpi
print width
Up to 104 mm (4.09 in.)
Up to 104 mm (4.09 in.)
108.4 mm (4.27 in.)
memory
1 GB RAM, 2 GB Flash
256 MB RAM, 2 GB Flash
256 MB RAM, 50 MB Flash
connectivity
USB 2.0, RS-232, Gigabit Ethernet, Bluetooth 4.0, optional Wi-Fi
USB, RS-232, Ethernet, optional Wi-Fi
USB 2.0, RS-232, Ethernet, WLAN
media types
Continuous, die-cut, notch, black mark
Continuous, die-cut, linerless, fanfold
Roll-fed, fanfold
label width
20 - 114 mm (0.79 - 4.5 in.)
25 - 131 mm (0.98 - 5.16 in.)
5 - 120 mm (0.19 - 4.72 in.)
roll diameter
203 mm (8 in.)
254 mm (10 in.)
205 mm (8 in.)
rfid support
UHF EPC Gen 2 V2, ISO/IEC 18000-63
UHF: Gen 2 ISO/IEC 18000-6C, HF: ISO/IEC 15693 & 14443
UHF EPC Class 1 Gen 2, multiple modules​
explore the zt series
Discover how the Zebra ZT printer series can revolutionize your labeling process. Fill out the form to connect with one of our printing experts.
