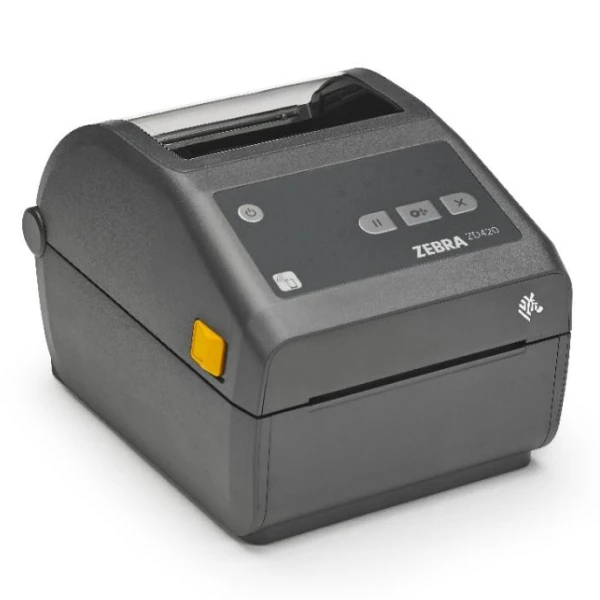

The Zebra ZD Series is a diverse lineup of desktop printers designed to meet a wide range of labeling needs, from basic to advanced applications. Within this series, the ZD200, ZD400, and ZD600 sub-series each offer different levels of functionality and performance. By focusing on the ZD220, ZD420, and ZD620, we illustrate the full spectrum of options available in the ZD Series, helping you choose the model that best fits your specific needs.
200 Series
The ZD220 is the entry-level model in the ZD Series, perfect for basic labeling tasks. It delivers reliable performance with a straightforward setup, making it ideal for low to moderate printing volumes. This model is a cost-effective choice for businesses needing essential functionality without added complexity.
Best for: budget-friendly simplicity
400 Series
The ZD420 offers increased versatility with faster print speeds and both direct thermal and thermal transfer printing options. It features a user-friendly ribbon cartridge system for quick media loading, reducing downtime. This model is suited for businesses that need an easy-to-use printer with enhanced capabilities for broader applications.
Best for: versatile media handling
600 series
The ZD620 is the most advanced model, providing the highest print quality with resolutions up to 300 dpi. It includes enhanced connectivity options, such as wireless and Bluetooth, and features an intuitive color LCD display for easy monitoring. This model is designed for businesses requiring high-volume, high-quality printing with robust, user-friendly features.
Best for: high-volume printing
Technical and media specifications.
The Zebra ZD Series printers offer versatile options to meet a variety of labeling needs, with a focus on simplicity and reliability. This series is designed for efficient performance in space-constrained environments, providing consistent results across all models.
300 dpi
Print Resolution
Available in 203 and 300 dpi, depending on the selected model.
203 mm/s
Print Speed
102, 152, and 203 mm/s based on model version and print resolution.
118 mm
Label Width
15 mm to 118 mm label width (approximately 0.5 to 4.25 inches).
127 mm
Roll Diameter
Accommodates rolls up to 5 inches in diameter for extended print runs.
Printer specifications: ZD421
The Zebra ZD Series is built for durability and ease of use, with simple controls that minimize complexity and speed up the learning process.
Display: Five status icons with a three-button user interface
Interfaces: USB, optional Ethernet, Serial, 802.11ac Wi-Fi, Bluetooth
Memory: 512 MB Flash, 256 MB SDRAM
Power Supply: 100-240VAC, 50-60Hz,
Dimensions: 267 mm L x 202 mm W x 189 mm H (*ZD421).
Label and ribbon specifications: ZD421.
The ZD Series supports various label and ribbon types, providing the flexibility needed for diverse applications.
Media Types: continuous, die-cut, black mark, and fan-fold labels.
Print Width: 15 mm to 108 mm (.5 to 4.25 inches)
Core Diameter: 25.4 mm (1 inch).
Ribbon Types: wax, resin, and wax/resin combinations.
Ribbon Dimensions: Up to 74mm width and 300m length.
