Labeling small-diameter laboratory tubes presents challenges that larger tubes and vials often avoid. As tube diameters shrink, the available labeling area becomes more limited while the curved surface creates additional demands for barcode readability, label durability, and consistent application. Small changes in label design, materials, placement, or construction can have a greater impact than many laboratories expect.
Choosing the right tube labels starts with understanding these challenges rather than focusing on a single product or barcode format. This guide explains why small-diameter tubes require specialized design considerations and the factors laboratories should evaluate when selecting a labeling solution for their workflow.
Small-Diameter Laboratory Tube Labeling
Small-diameter laboratory tubes present a unique labeling challenge because they combine limited surface area with a tightly curved application surface. These physical constraints influence nearly every aspect of a label, from the amount of information it can display to how well a barcode scans and how consistently the label applies. Understanding these constraints helps laboratories evaluate labware labeling solutions based on their workflow and identification requirements rather than focusing on a single feature or material.
Less Space Creates More Design Tradeoffs
As tube diameters decrease, the available labeling area shrinks while the amount of information often stays the same. Barcodes, human-readable text, color coding, logos, regulatory information, and other identifiers all compete for the same limited space. Every design decision becomes more deliberate because expanding one element usually requires reducing or repositioning another. Laboratories often need to prioritize the information that supports sample identification while maintaining enough space for reliable barcode scanning and efficient handling.
Tight Mandrels Increase Labeling Complexity
Engineers often describe small-diameter tubes as tight-mandrel applications because the label must conform to a much smaller radius than it would on a larger vial or container. As the label wraps around the tube, the tighter curvature can influence how the material conforms to the surface, how much of the printed information remains visible, and how the barcode presents to a scanner. These geometric constraints create challenges that simply don’t exist on larger cylindrical labware.
Every Label Component Matters More
Small-diameter tubes leave very little room for compromise. Face stock thickness, adhesive selection, print quality, barcode size, application accuracy, and label placement all work together within a confined space, so changes to one component can influence the overall performance of the labeling system. Rather than evaluating these elements independently, laboratories should recognize that successful small-diameter tube labeling depends on balancing multiple design considerations to support the intended application.
Barcode Design for Small-Diameter Tubes
The barcode often serves as the primary identifier on a laboratory tube, so available space can have a direct impact on readability and workflow efficiency. Smaller tubes don’t necessarily require different barcode technologies, but they do reduce the margin for error. Barcode size, print quality, available label space, and scanner capabilities all become more important as tube diameters decrease.
Smaller Barcodes Leave Less Room for Error
Large barcode labels can often tolerate minor imperfections without affecting performance. Small barcode labels have much less flexibility. As barcode elements become smaller, print quality, contrast, and image consistency play a greater role in reliable scanning. Even when two labels contain the same data, the available print area can influence how easily scanners capture that information.

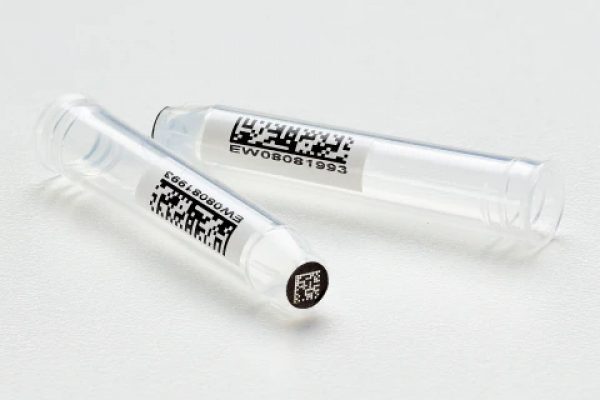

Barcode Symbology Changes the Space Requirements

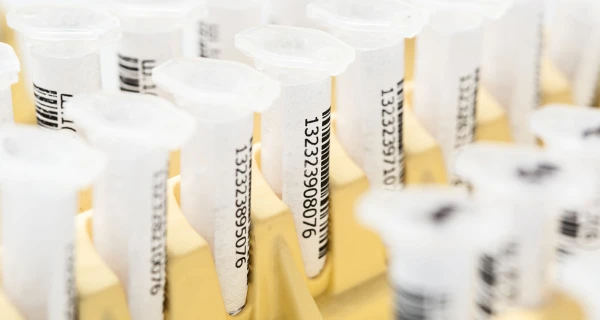

Different barcode symbologies organize data in different ways, which means they don’t all use printable space the same way. Linear barcodes typically require more horizontal space, while two-dimensional symbols can encode large amounts of information within a smaller footprint. The best symbology depends on factors such as the amount of data, scanner compatibility, industry standards, and laboratory workflow rather than tube diameter alone.
Every Millimeter of Printable Space Counts

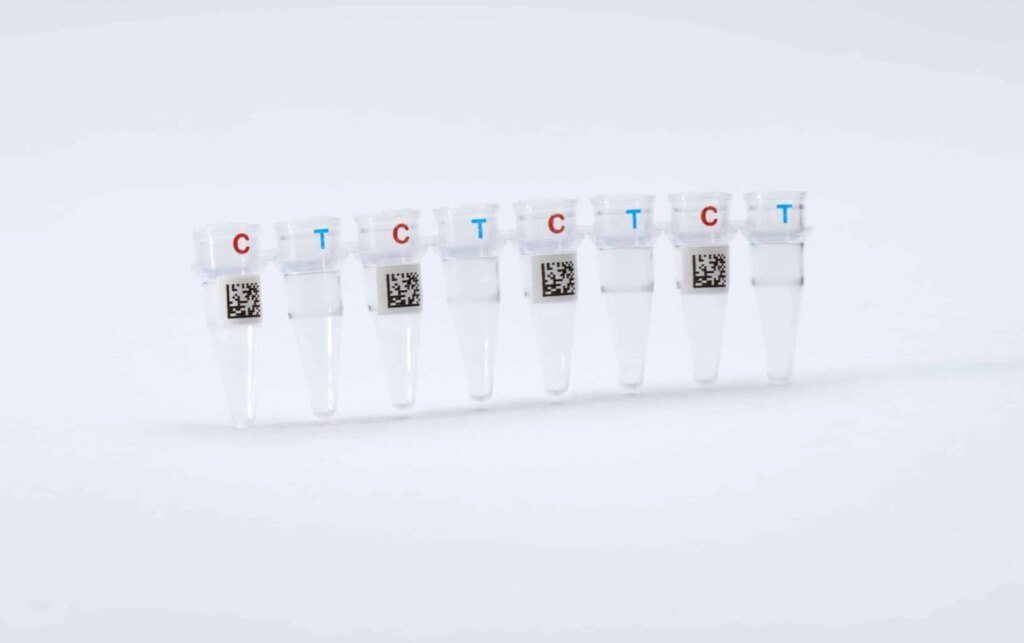

Barcodes rarely appear on a label by themselves. Human-readable text, color coding, logos, regulatory information, and other identifiers often share the same limited space. As tube diameters become smaller, laboratories must balance these competing requirements while preserving barcode readability. Careful label design helps ensure that each element supports sample identification without unnecessarily reducing the performance of another.
Label Placement for Small-Diameter Laboratory Tubes
Label design and barcode quality only solve part of the problem. Every label also needs consistent placement so people and equipment can locate and scan the barcode throughout the sample’s lifecycle. As tube diameters become smaller, even minor variations in label position or orientation become more noticeable because they consume a larger percentage of the available surface area.
Consistent Placement Supports Reliable Scanning
Laboratory personnel often scan tubes using handheld barcode scanners, but many workflows also rely on fixed-position scanners, automated storage systems, decappers, robotic handling systems, and other laboratory instruments that expect the barcode to appear in a predictable location. When label placement varies from tube to tube, scanning can become less efficient, and automated systems may require additional handling or rescanning to identify samples. Consistent placement helps create a more predictable workflow for both people and equipment.
Smaller Tubes Reduce Placement Tolerance
A few millimeters of variation may have little impact on a larger vial, but the same amount of variation represents a much larger percentage of the available labeling area on a small-diameter tube. Labels may wrap farther around the tube than intended, interfere with graduations or other markings, or change how the barcode presents to scanners. As tube diameters decrease, placement accuracy becomes increasingly important because the physical margin for error decreases.
Application Methods Influence Placement Consistency
Laboratories can apply labels manually, use automated tube label applicators, or purchase pre-barcoded or pre-marked tubes with identification already applied during manufacturing. Each approach offers different advantages depending on the workflow, production volume, and level of consistency required. For applications where barcode location plays an important role in downstream scanning or automation, laboratories should evaluate not only the label itself but also the application method used to place it.
Choosing Labels for Small-Diameter Laboratory Tubes
Selecting labels for small-diameter laboratory tubes involves more than finding a label that fits the available space. The tube, barcode, application method, laboratory environment, and downstream workflow all influence which labeling solution will perform best. Evaluating these requirements together helps laboratories identify solutions that support reliable identification throughout the sample’s lifecycle.
Define Your Identification Requirements First
Before evaluating label materials or barcode formats, laboratories should define what the label needs to accomplish. The amount of data, barcode requirements, human-readable information, regulatory markings, and expected service life all influence the available design space. Establishing these requirements early helps guide later decisions about label construction, printing methods, and application.
Consider the Entire Laboratory Workflow
A tube label often supports much more than a single scanning event. Laboratory personnel may scan the sample during accessioning, processing, storage, retrieval, analysis, and shipping, while automated storage systems, robotic handlers, decappers, and other laboratory instruments may also rely on the barcode throughout the workflow. Understanding where and how the sample moves helps laboratories evaluate labeling solutions that support every stage of the process rather than a single point in time.
Balance Performance Across the Complete Application
Small-diameter tube labeling rarely depends on a single feature. Barcode readability, placement consistency, environmental durability, application methods, and workflow compatibility all contribute to overall performance. Rather than optimizing one characteristic in isolation, laboratories should evaluate how these factors work together to support accurate sample identification and efficient laboratory operations.
Small-diameter laboratory tubes create unique labeling challenges, but they don’t require a one-size-fits-all solution. By understanding how tube size influences barcode design, label placement, and overall workflow, laboratories can make more informed decisions when evaluating labeling options for their application.
Need help selecting the right tube label? Explore our tube labels or request a tube label sample to evaluate materials, print quality, and label constructions for your laboratory application.
